EV charger grant start date

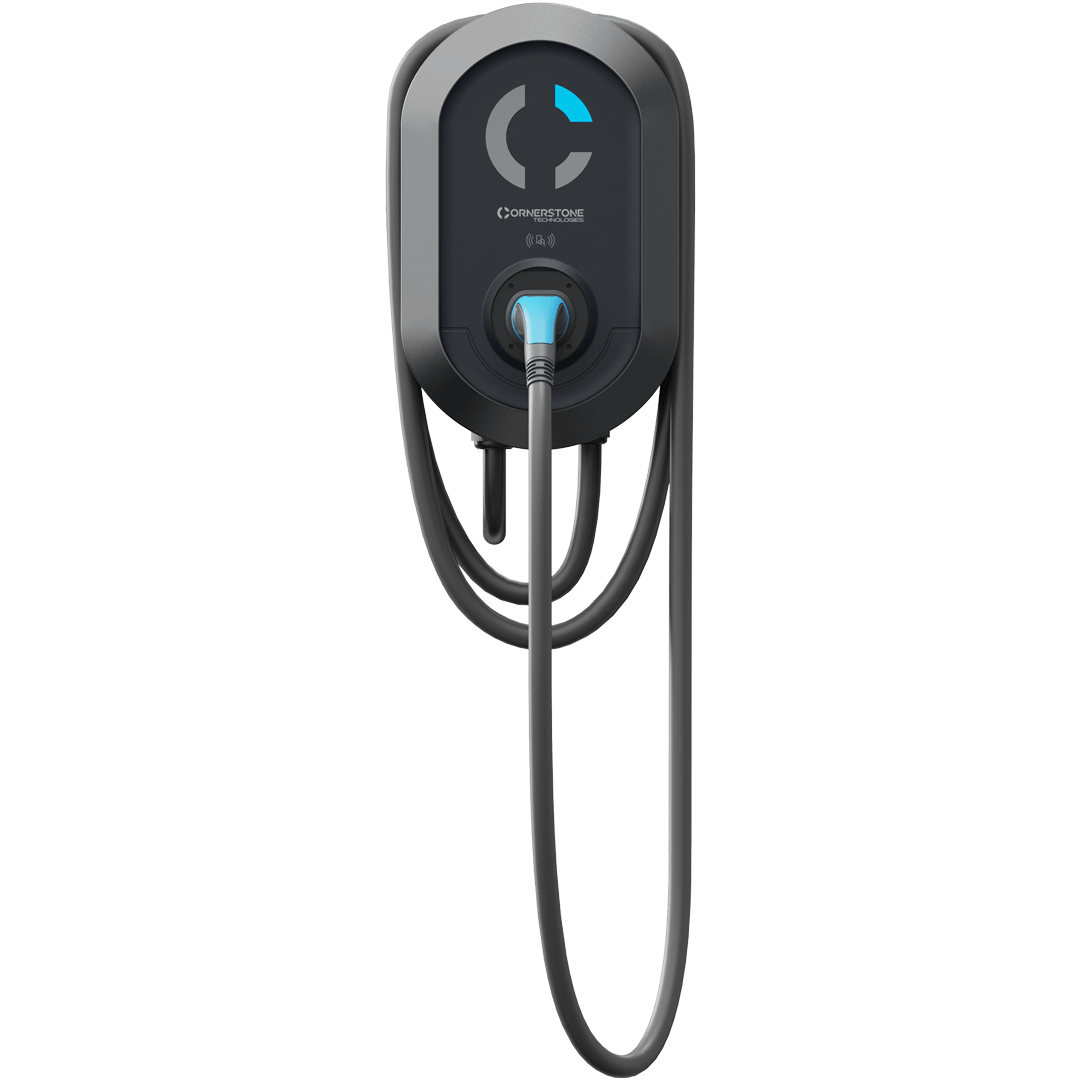

Glow

Customization

Tailor-made with bezel colour and engraved name

User Interface

The user-friendly interface guides you every step of the way

NFC Authentication

Tap your card or mobile NFC to pay

Optimised Charging

Enables Load Management System to optimize charging speed, current and power for safety

Customization

Tailor-made with bezel colour and engraved name

User Interface

The user-friendly interface guides you every step of the way

NFC Authentication

Tap your card or mobile NFC to pay

Optimised Charging

Enables Load Management System to optimize charging speed, current and power for safety

Model NameGAGD (with display)
Input Rating230Vac± 10%, 7kW / 32A,
Single-phase

400Vac± 10%,
11kW / 16A; 22kW / 32A,
Three-phase		230Vac± 10%, 7kW / 32A,
Single-phase

400Vac± 10%,
11kW / 16A; 22kW / 32A,
Three-phase
Output Power 7kW min.22kW max.
Output Current32A max.
Status IndicatorsMulti-color LED Indicator
Buttons and SwitchAuto Unlock Connector When Power Goes Out (Socket Ver. only)
NFC Card ReaderISO/IEC 14443A/B/MIFARE
Network InterfaceWi-Fi / Bluetooth / 4G
Charging ProtocolOCPP1.6J
Dimension
(W x H x D)		150*276*444mm
Weightapprox. 10kg
InstallationPedestal for Single or Dual Pole-mounted
Certificate / Compliance TR25:2016, CE


Download Brochure
Request a demo & drive your EV to our showroom for a quick charge today!
CONTACT US
Loan Facilities
Free Site Evaluation
Lock In Our Promo Prices

Download our QuickCharge.sg app – the first accessible open-for-all charge point operating platform in Singapore.

Great things are meant to be shared.

Quick Links
Main Menu
Quick Links
Main Menu
Quick Links
Main Menu
Get QuickCharge.sg in-app offers & EV charging news delivered to your email address:
Get QuickCharge.sg in-app offers & EV charging news delivered to your email address:
Share on:

Start typing and press enter to search

Scroll to Top

Let us help you.

We facilitate loan facility services for interested customers. This service is only applicable for commercial customers and not for personal loans.

For more information, please fill in the form below and our friendly sales consultant will get back to you shortly.

Interested in joining the Closed Beta Testing of the QuickCharge Mobile App?

Register your interest with QuickCharge.sg and leave the hard work to us.

By registering your interest with us, QuickCharge.sg will undertake the role of EVCO and approach your MCST for the application of the EV Common Charger Grant. As a token of appreciation, you will receive free charging credits for successful QuickCharge EV charger installation within your condominium/private apartment!

Cost for each cost component50% co-funding on each cost componentTotal co-funding amount
Example 1:
Charging system = $3,000
LEW fees = $2,000
Cabling and installation cost = $1,500		= $1,500
= $1,000
= $750		= $3,250
Example 2:
Charging system = $5,000
LEW fees = $3,000
Cabling and installation cost = $2,500 		= $2,500
= $1,500
= $1,000 (sub-cap of $1,000 on cabling and installation cost) 		= $4,000 (overall cap of $4,000 per charger)
Example 3 (2 chargers):
Charging system = $9,000
Average per charger = $4,500

Total LEW fees = $4,000
Average per charger = $2,000

Total cabling and installation cost = $5,500
Average per charger = $2,750		= $2,500 per charger
= $1,000 per charger
= $1,000 (sub-cap of $1,000 on cabling and installation cost) 		= $4,000 x 2 (overall cap of $4,000 per charger)
= $8,000

Charge towards this deal.

Decide now and enjoy later! Submit your interest to lock in your eligibility for our current promotions.

Free Site Evaluation

Our professional electrician will:
  • Identify and determine the power supply at your premises;
  • Understand technical requirements;
  • Propose location(s) for charger installation;
  • Ensure your power supply can safely support the power requirements of your charger; and,
  • Document the site visit.
