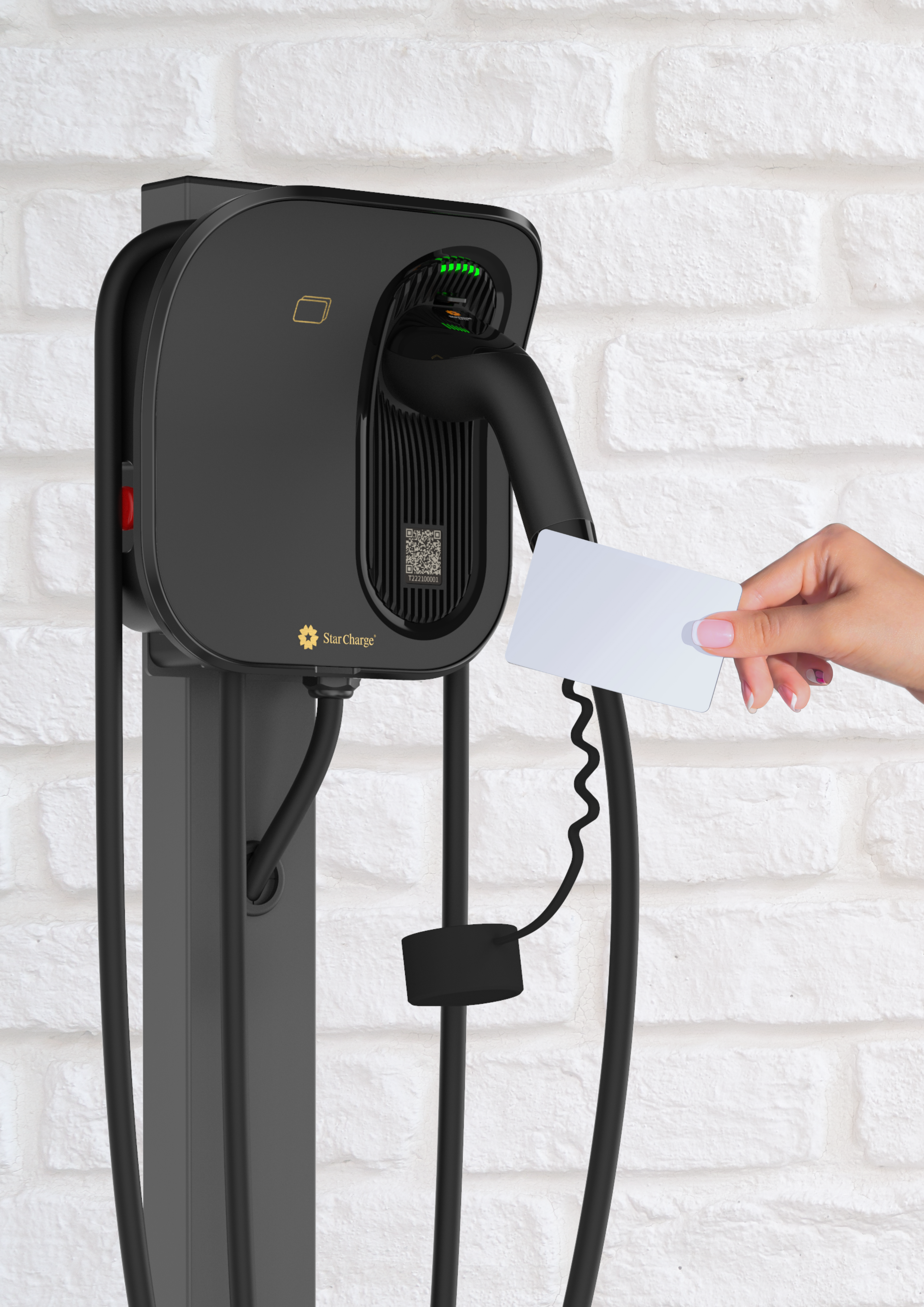

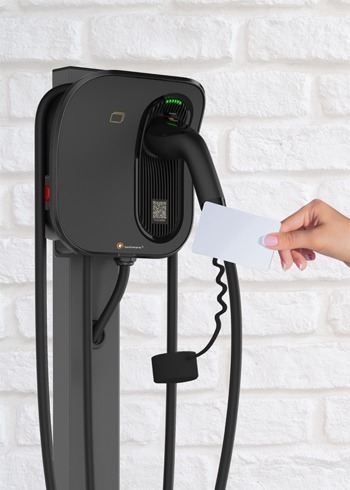

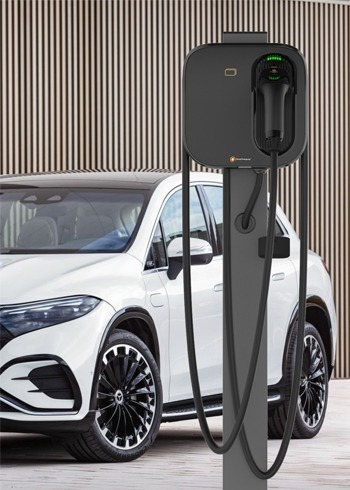

Artemis 7 / 11

Design

Small and mighty with curved surface, LED indicator

Protection

Remarkable protection level up to IP55 & IK10

quickcharge-artemis-specs
Safety

Solid as a shield, with multiple protections

Connectivity

4G, Wi-Fi, Ethernet, Bluetooth (configurable options)

Design

Small and mighty with curved surface, LED indicator

Protection

Remarkable protection level up to IP55 & IK10

Safety

Solid as a shield, with multiple protections

Connectivity

4G, Wi-Fi, Ethernet, Bluetooth (configurable options)

Design

Small and mighty with curved surface, LED indicator

Protection

Remarkable protection level up to IP55 & IK10

Safety

Solid as a shield, with multiple protections

Connectivity

4G, Wi-Fi, Ethernet, Bluetooth (configurable options)

Model NameArtemis 7Artemis 11
Input Rating230Vac
±10%, 50/60Hz , Single phase		230Vac
±10%, 50/60Hz , Single phase
400Vac
±10%, 50/60Hz , Three phases
Output Power 7kW min.11kW max.
Output Current32A max.
Status IndicatorsLED
Buttons and SwitchEmergency stop button
Card ReaderISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693
BluetoothBluetooth 5.0
Network Interface4G, Wi-fi, Ethernet
Charging ProtocolOCPP1.6J
Dimension
(W x H x D)		280 x 280 x 148 mm
WeightApprox. 3.75kg

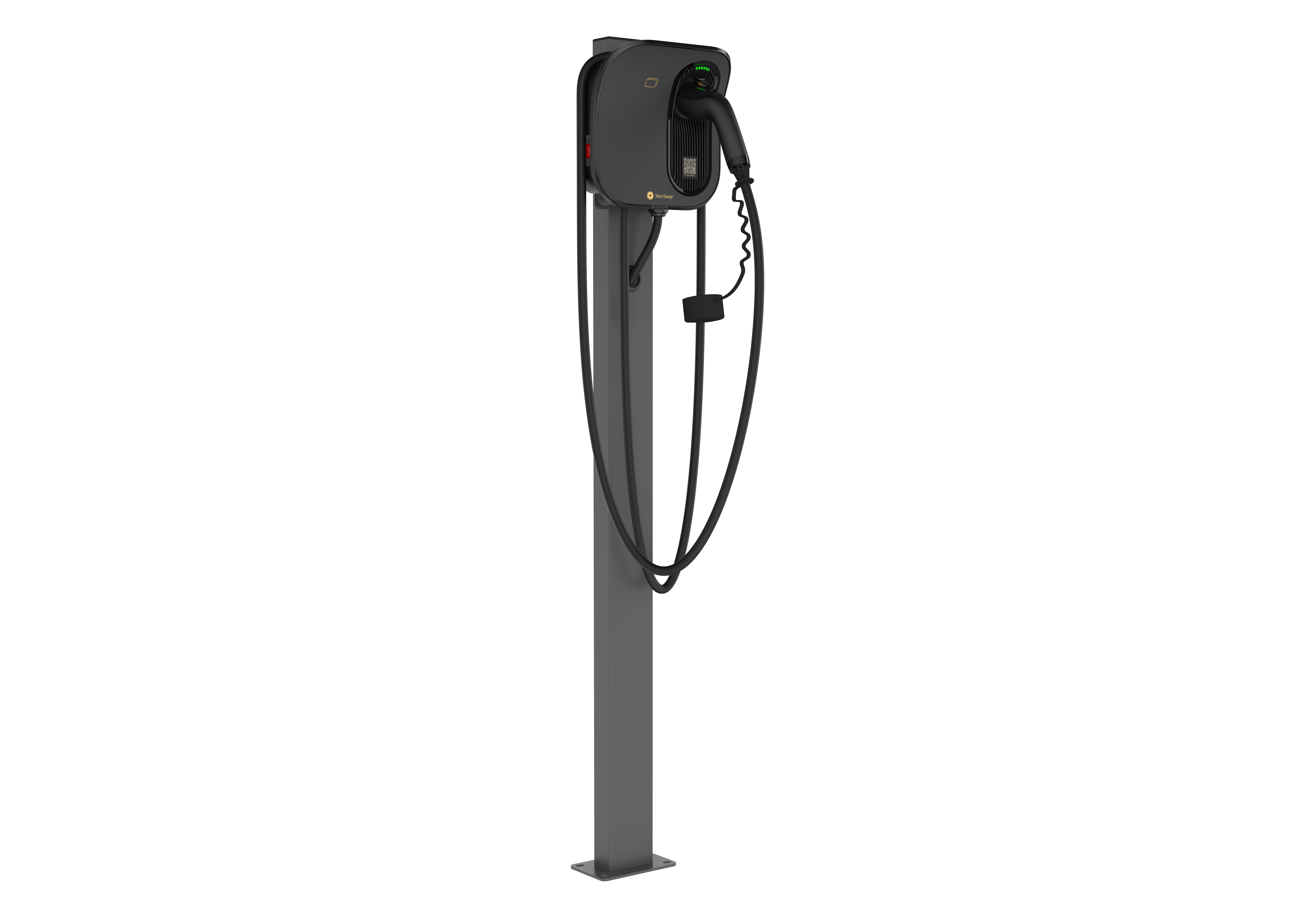

InstallationWall mounting, Pole mounting (Pole is optional)
Certificate / ComplianceTR25:2022, CE




Download Spec Sheet
